BMW 3 Series 1.8 316 (E30) (1982-1983)
Back to E30 ModelsEngine Code: 18 4V C
Power: 66 kW (90hp) 5500 rpm
Engine Torque Specs
| Component | Torque |
|---|---|

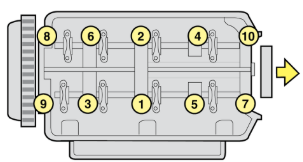

| Cylinder head | 34-40 Nm → 58-62 Nm → Wait 15 minutes → 30°-36° → Run engine 25 minutes → 20°-30° |
| Main bearings | Stage 1: 29-31 NmStage 2: 58-63 Nm |
| Big end bearings | Stage 1: 26-28 NmStage 2: 52-57 Nm |
| Flywheel/driveplate | 98-112 Nm |
| Crankshaft pulley/damper centre bolt | 180-200 Nm |
| Spark plugs | 24-28 Nm |
Chassis Tightening Torques
| Component | Torque |
|---|---|
| Front hub | 290 Nm |
| Rear hub | 200 Nm |
| Road wheels | 120±10 Nm |
